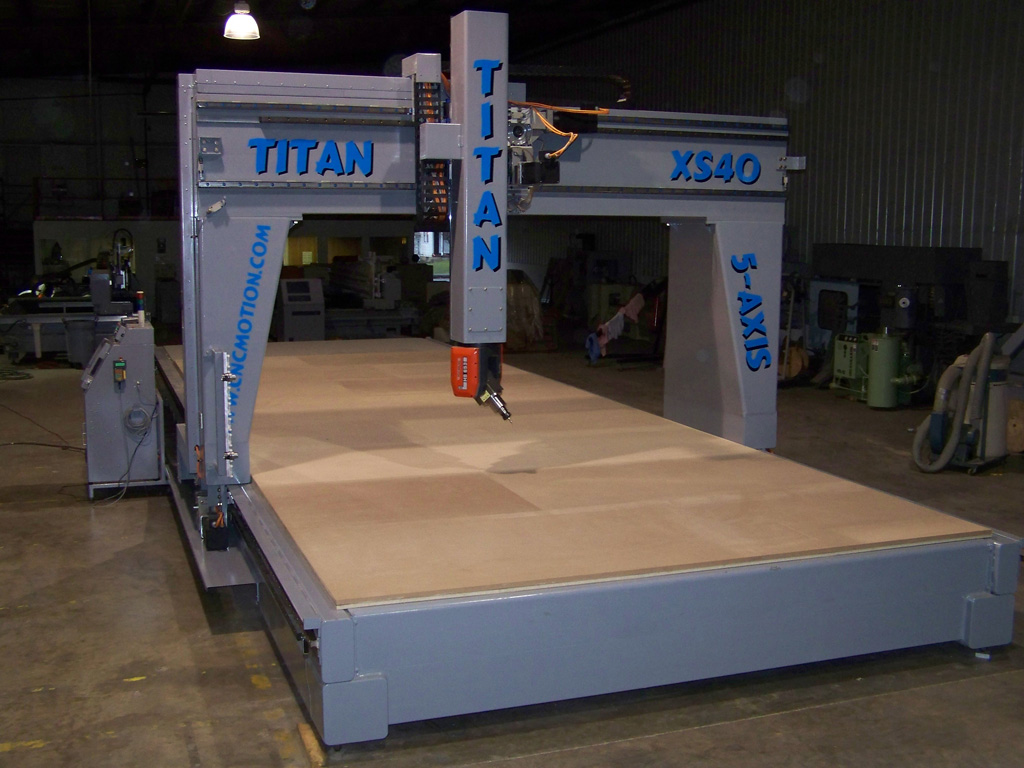

CNC Auto-Motion TITAN 5 Axis CNC Gantry Mill

Model	Titan Series 5 Axis Gantry Mill
X Axis Travel	420 inches
Y Axis Travel	144 inches
Z Axis Travel	60 inches
Interpolated Axis	5
Electrospindle	17 kW; 25,000 RPM HSK F63 with liquid cooling
2 Axis Head	HSD HS653
Tool Changer	8 Position
Delivery	eta. Summer 2008

Click on any picture to enlarge.
