 OSAI
10/510i CONTROL UNIT
The new 10/510i models greatly speed up module
integration by the way in which flexible configuration enables the
numerical control and a PC to be integrated in the operator panel.
The innovative characteristics of the new model is a brand new
concept, with hardware "building-blocks" based on the basic modules
used in various configurations:
- 10/510i Blink.
CNC integrated in the BLink operator panel
- 10/510i OpLink.
CNC integrated in the OpLink operator panel
- 10/510i WinLink.
CNC and PC integrated in the WinLink operator panel
- 10/510i Control Unit.
CNC Black Box for totally remote applications
The combination of the
separate components of the CNC into a single hardware module makes
for an extremely simple installation, completely eliminating the
wiring normally necessary to connect the CNC to the operating panel.
This results in direct benefits in the reduction of plant cost and a
significant saving of space within the electrical cabinet.
To recap; through the
introduction of the 10/ 510, OSAI offers their customers a new, more
powerful, more flexible CNC, with a powerful 850MHz processor, the
ability to manage digital applications at high speed, a guarantee of
full compatibility with preceding products, and full configurability
including:
- control of up to 20 simultaneous processes
- management of up to 6 analogue axes
- management up to 8 digital Sercos® axes
- management up to 16 digital OS-WIRE axes
- polynomial interpolation algorithms for HSM functionality
- standard industry field bus interface with: CANOpen,
INTERBUS-S and PROFIBUS-DP in Slave mode
- standard Ethernet communication interface
Click here to download literature
SPINDLE SPECIFICATIONS
|
HS
650 - 5 Axis Router Spindle |
|
ES775
Router Spindle with Liquid Cooling |
|
Nominal
Voltage |
380 V
± 10% |
380 V
± 10% |
380 V
± 10% |
|
Nominal
Current |
16 A |
16 A |
11.3 A |
|
Rated
Output |
7.5 kW |
7.5 kW |
5 kW |
|
Nominal
Speed |
9,300
RPM |
12,000
RPM |
24,000
RPM |
|
Number
of 2p Poles |
4 |
4 |
4 |
|
Nominal
Efficiency |
0.91 |
0.91 |
0.90 |
|
Nominal
Torque |
7.9 Nm |
6 Nm |
2 Nm |
|
Service
Type |
S1 |
S1 |
S1 |
|
Power
Factor cos |
0.78 |
0.79 |
0.74 |
|
Type
Of Cooling |
Liquid |
Liquid |
Liquid |
|
Insulation
Class |
F |
F |
F |
|
Weight |
31 kg. |
31 kg. |
31 kg. |
|
A
Axis |
|
Maximum
continuous operating speed |
50° /
second (motor @ 3,000 RPM) |
|
Maximum
positioning speed |
74° /
second (motor @ 3,000 RPM) |
|
Polar
axis motor |
0.4 kW
@ 3,000 RPM |
|
Polar
axis motor incremental encoder |
2048
pulses / rev (on board motor) |
|
Mechanical
axis rotation |
MAX
+/- 125° |
|
Axis
torque during continuous operation |
294
Nm |
|
Maximum
allowable axis torque |
617
Nm |
|
Minimum
movement for encoder pulse |
2.5
µm |
|
C
Axis |
|
Maximum
continuous operating speed |
50°
/ second (motor @ 3,000 RPM) |
|
Maximum
positioning speed |
74°
/ second (motor @ 3,000 RPM) |
|
Polar
axis motor |
0.75
kW @ 3,000 RPM |
|
Polar
axis motor incremental encoder |
2048
pulses / rev (on board motor) |
|
Mechanical
axis rotation |
MAX
+/- 220° |
|
Axis
torque during continuous operation |
294
Nm |
|
Maximum
allowable axis torque |
617
Nm |
|
Minimum
movement for encoder pulse |
2.3
µm |

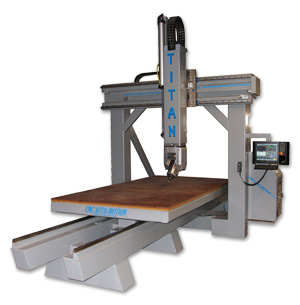

CLICK ON
ANY PICTURE TO ENLARGE
5 AXIS SPINDLES
|
|
ES790 12kW
ISO40
Applications: Glass, Marble,
Granite, Iron, Aluminum |
|
|
ES775L 7.5kW
ISO30
Light Applications |
|
|
ES779L 10kW
Medium Applications |
|
|
ES789 11-16kW
Heavy Applications |
|
